PRODUCTS

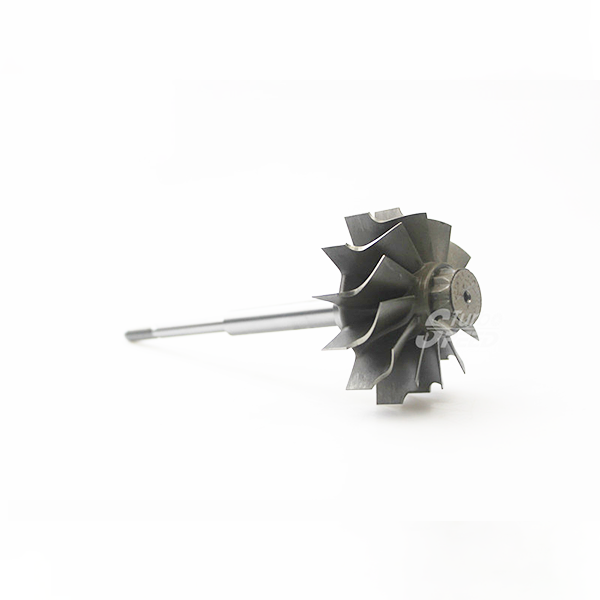

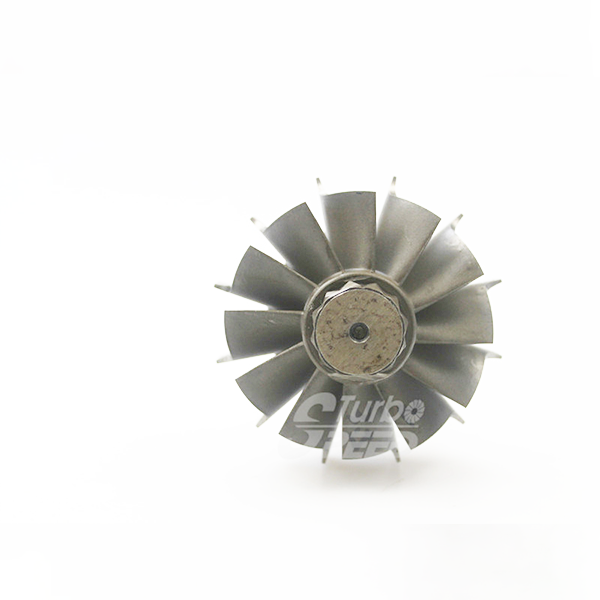

Shaft & Wheel Holset Series
| STT P/N | Model | Exducer (mm) | Inducer (mm) | Tip Width (mm) | Shaft 1 (mm) | Shaft 2(mm) | Thread | Blade | Direction |
| H1C20002 | H1C | 60 | 69.6 | 10.94 | 10.976 | 6.996 | M7×1.0-6g LH | 12 | Clockwise |
| H1E20010 | H1E | 67 | 76 | 12.44 | 10.976 | 6.996 | M7×1.0-6g LH | 12 | Clockwise |
| H1E20013 | H1E | 64 | 76 | 10.15 | 10.976 | 6.996 | M7×1.0-6g LH | 12 | Clockwise |
| H3520005 | HY35 | 58 | 65 | 10.9 | 10.976 | 6.996 | M7×1.0-6g LH | 12 | Clockwise |
| H4020014 | HX40 | 64 | 76 | 10.15 | 10.976 | 6.996 | M7×1.0-6g LH | 12 | Clockwise |
| H5220012 | HX52 | 70 | 84 | 9.85 | 12.196 | 7.996 | M8×1.25-6g LH | 12 | Clockwise |
| H5520016 | HY55V | 77 | 86 | 10.49 | 12.196 | 7.996 | M8×1.25-6g LH | 12 | Clockwise |
| H5520019 | HX55 | 80 | 86 | 13.02 | 12.196 | 7.996 | M8×1.25-6g LH | 12 | Clockwise |
| H5520025 | HY55V | 75 | 86 | 10.5 | 12.196 | 7.996 | M8×1.25-6g LH | 12 | Clockwise |
| H5520027 | HY55V | 80 | 86 | 10.5 | 12.196 | 7.996 | M8×1.25-6g LH | 12 | Clockwise |
| H5520026 | HY55V | 72 | 86 | 10.5 | 12.196 | 7.996 | M8×1.25-6g LH | 12 | Clockwise |
| H5520028 | HY56V | 72 | 86 | 10.5 | 14.2583 | 11.109 | M11×1.0-6g LH | 12 | Clockwise |
| H5520024 | HY55V | 77 | 81.5 | 11.9 | 14.2583 | 11.109 | M11×1.0-6g LH | 12 | Clockwise |
| H5520023 | HY55V | 80 | 86 | 10.5 | 14.2583 | 11.109 | M11×1.0-6g LH | 12 | Clockwise |
| H4320003 | HE431V | 67 | 72 | 8.5 | 10.976 | 6.996 | M7×1.0-6g LH | 11 | Clockwise |
| H4320004 | HE451V | 60 | 72 | 8.3 | 10.976 | 6.996 | M7×1.0-6g LH | 11 | Clockwise |
| H4320002 | HE431V | 60 | 76 | 7.8 | 10.976 | 6.996 | M7×1.0-6g LH | 11 | Clockwise |
| H4320005 | HE451V | 67 | 76 | 7.8 | 10.976 | 6.996 | M7×1.0-6g LH | 11 | Clockwise |
| H4320001 | HE451V | 67 | 76 | 7.8 | 10.976 | 6.996 | M7×1.0-6g LH | 12 | Clockwise |
| H5220019 | HE500V | 68 | 84 | 10.1 | 12.196 | 7.996 | M8×1.25-6g LH | 12 | Clockwise |
| H5220018 | HE500V | 70 | 84 | 9.8 | 12.196 | 7.996 | M8×1.25-6g LH | 12 | Clockwise |
